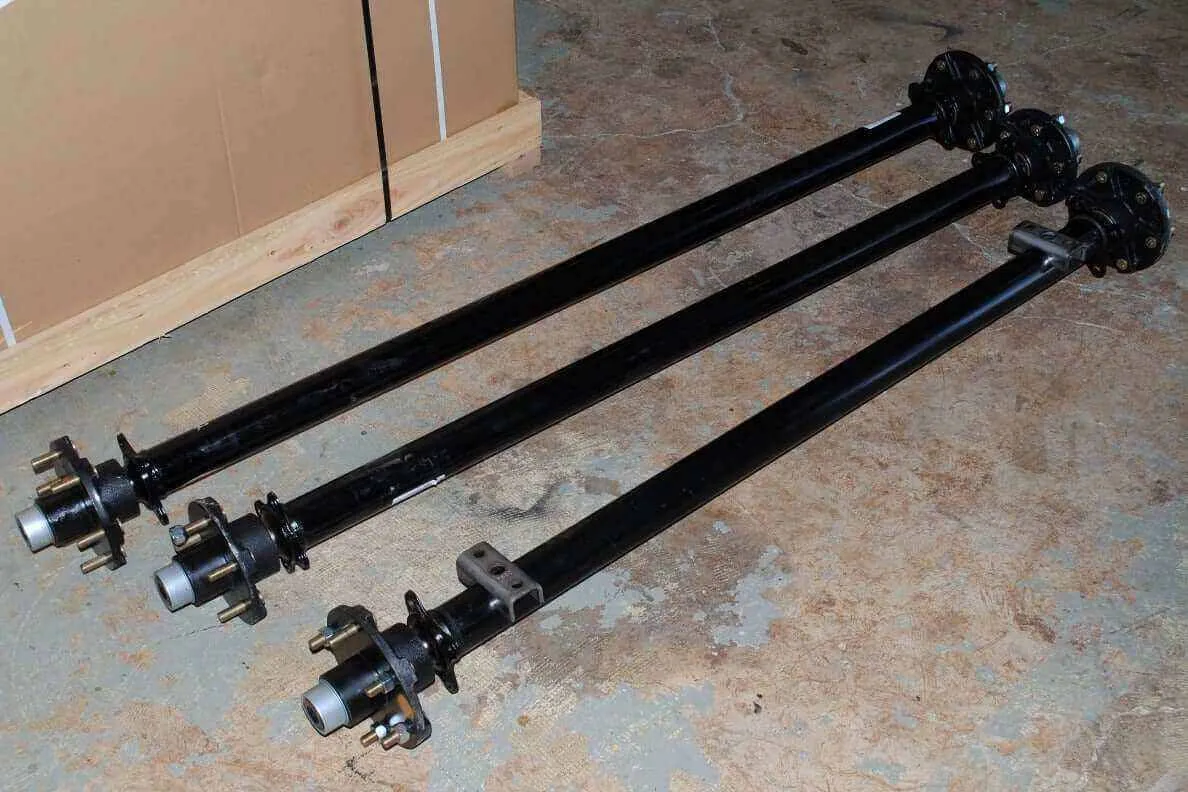

Axle for Trailer Custom Built 3500 lb.
Custom straight tube trailer axles sized specifically for your DIY trailer project.
- Built with 3.5K trailer axle components and 2 3/8” diameter straight tube
- Come with Easy Lube style spindles and brake flanges
- Width can be sized in 1/2” increments
- Available Hubs: 5x4.5, 5x4.75, 5x5, 5x5.5, 6x5.5
- Arrive greased, assembled and ready to run
- Comes with loose spring seat and lug nuts. Can weld spring seats on( $22) if spring bolt center-to-center measurement is provided.
Formula to determine proper Axle for Trailer Custom Built 3500 lb width: width of frame(or whatever will rub the tire sidewall first) 3”(for 1.5” sidewall clearance on each side) (2 * tire & wheel combination back spacing, measured from back of wheel hub to bottom of a straight edge across tire sidewall)
Axle for Trailer Custom Built 3500 lb lead time is 3-6 weeks
Built to order Axles are non-returnable
$239
